Description

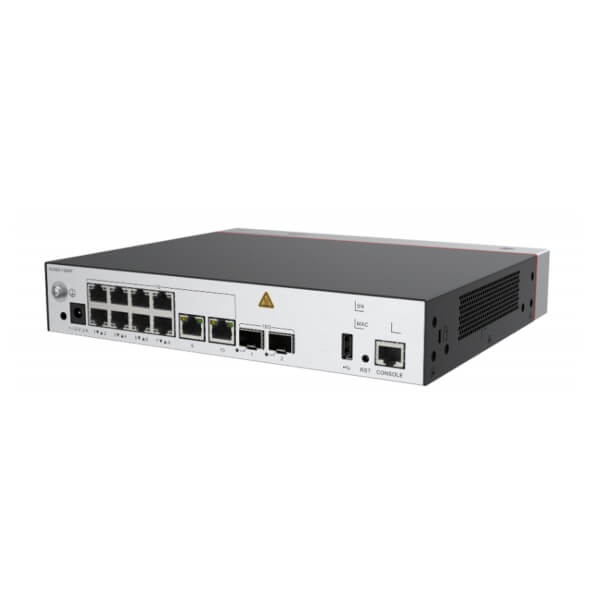

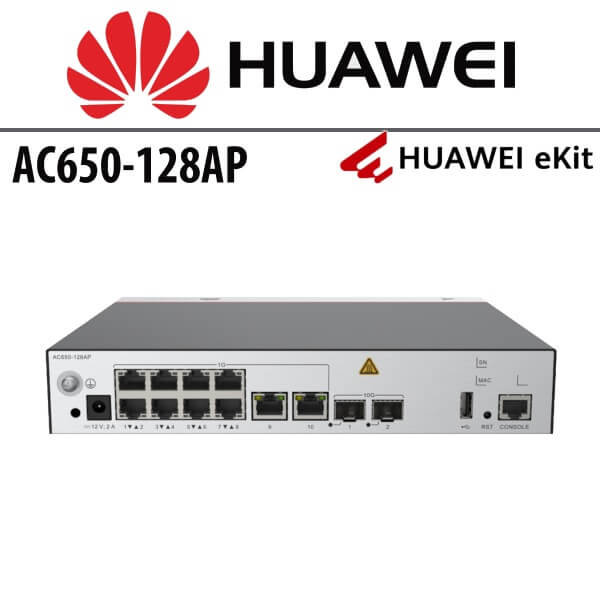

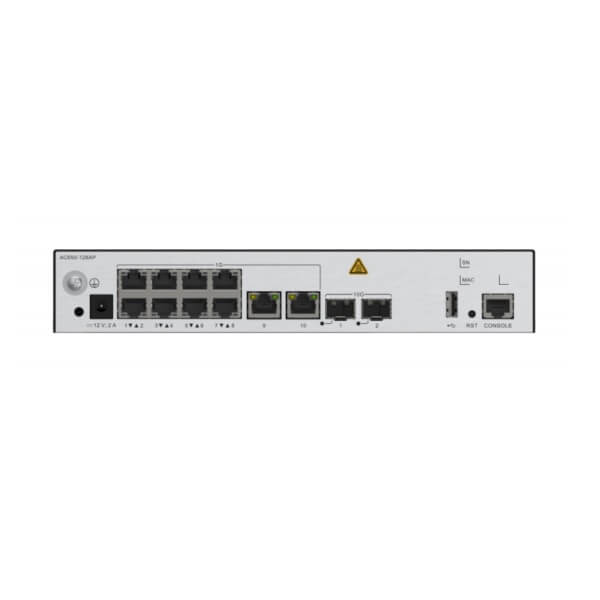

Huawei AC650-128AP Wireless Access Controller Dubai
The Huawei AC650-128AP Dubai is a cutting-edge wireless access controller (AC) developed by Huawei to meet the demands of SME Network markets. Engineered for seamless integration with Huawei access points (APs), this device excels in creating powerful wireless networks across various settings, such as small campus networks, small enterprise office networks, and wide-reaching hotspot coverage areas. Capable of managing up to 128 access points, the Huawei AC650-128AP Dubai can support as many as 2,048 simultaneous Station Access Points (STAs), ensuring reliable, high-performance network connectivity for a vast number of devices. This makes it an exceptional choice for small to medium-sized businesses aiming to build or upgrade their wireless networking infrastructure.
Technical Specifications
| Description | AC650-128AP mainframe (10*GE ports, 2*10GE SFP+ ports, with the AC/DC adapter) |
| Part Number | 02355NCG |
| Model | AC650-128AP |
| First supported version | V200R022C10 |
| Installation Type |
|
| Dimensions without packaging (H x W x D) [mm(in.)] | Basic: 43.6 mm x 250 mm x 210 mm (1.72 in. x 9.84 in. x 8.27 in.)
Maximum: 43.6 mm x 250 mm x 215 mm (1.72 in. x 9.84 in. x 8.46 in.) |
| Weight without packaging [kg(lb)] | 1.9kg |
| Storage | Nand FLASH 1GB |
| Console port | RJ45 |
| Maximum power consumption [W] | 23.58 W |
| Maximum heat dissipation [BTU/hour] | 80.45 BTU/hour |
| Power supply mode | DC adapter |
| Service port surge protection | 6 kV in common mode |
| Types of fans | None |
| Maximum number of physical ports on the entire device | 2 x 10GE (SFP+) + 10 x GE (RJ45) |
| Long-term operating temperature [°C(°F)] | 0°C to 45°C (32°F to 113°F) (If the altitude is in the range of 1800 m to 5000 m, the temperature decreases by 1°C or 1.8°F every time the altitude increases by 300 m.) |
| Storage temperature [°C(°F)] | –40°C to +70°C (–40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Long-term operating altitude [m(ft.)] | –60 m to +5000 m (–196.85 ft to +16404.20 ft) |
| Atmospheric pressure [kPa] | 53kPa – 106kPa ETSI 300 019-2-3 |
| Ground | Ground |
| USB | 1 x USB 2.0 (host type A) port |
| MTBF [year] | 50 year |
| MTTR [hour] | 2 hour |
