Description

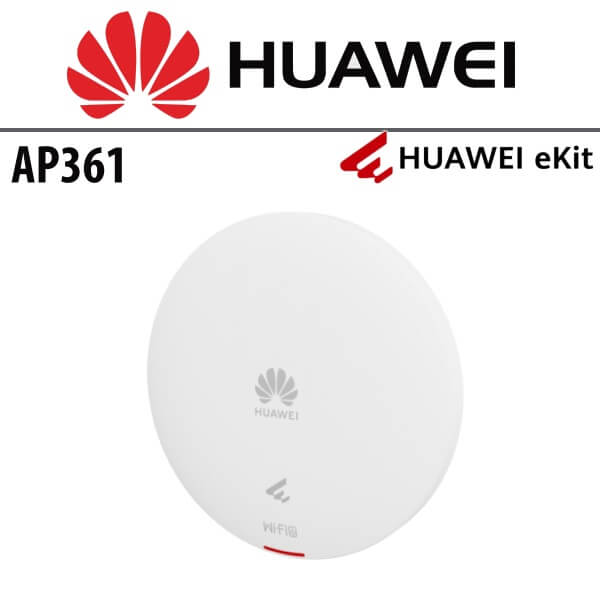

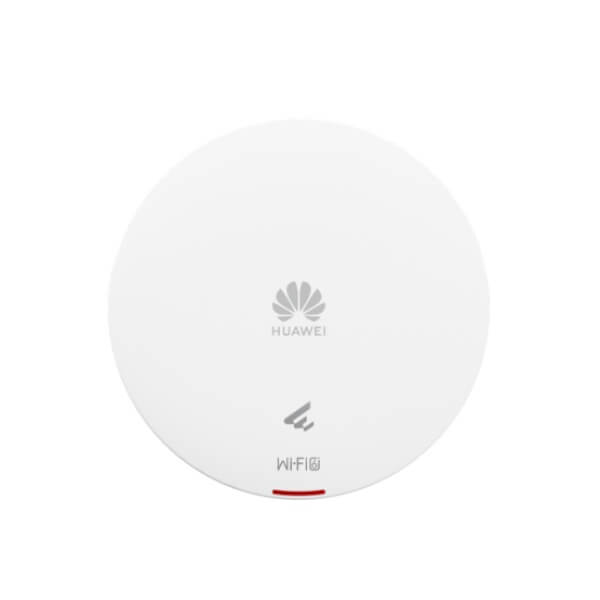

Huawei AP361 Access Point Dubai
The Huawei AP361 Dubai is a cutting-edge indoor Wi-Fi 6 (802.11ax) access point, specifically engineered to provide exceptional wireless connectivity with enhanced performance. It operates on both the 2.4 GHz (2×2) and 5 GHz (2×2) frequency bands simultaneously, which ensures a robust, stable, and reliable connection. Notable for its high bandwidth and the ability to handle a large number of concurrent users, this access point is designed with a compact form factor that not only facilitates flexible installation but also helps reduce overall deployment costs for customers.
These advanced features make the Huawei AP361 Dubai an optimal solution for providing indoor wireless coverage in small to medium-sized enterprises (SMEs). It is perfectly suited for a wide range of environments, including corporate offices, small- to medium-sized hospitals, commercial real estate, budget chain hotels, and primary and secondary educational institutions. By offering a scalable and efficient Wi-Fi solution, the Huawei AP361 Dubai significantly enhances connectivity and improves the user experience across various applications, ensuring seamless and uninterrupted service in diverse settings.
Features
- Working simultaneously on the 2.4 GHz (2×2) + 5 GHz (2×2) frequency bands

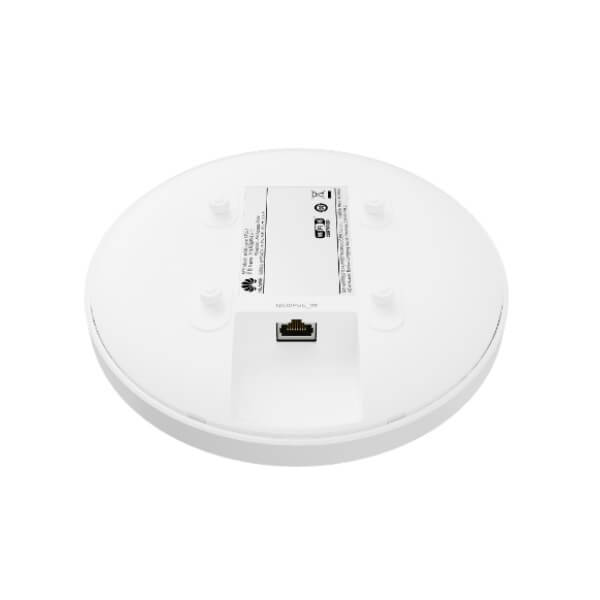

- 1 x GE electrical port
- Built-in smart antennas that automatically adjust the coverage direction and signal strength based on the intelligent switchover algorithm to adapt to the changing application environment, providing accurate and stable coverage as STAs move
- Working modes: Fit, Fat, and cloud management
Technical Specifications
| Description | AP361(11ax indoor,2+2 dual bands,smart antenna) |
| Part Number | 50086871 |
| Model | AP361 |
| First supported version | V200R023C00 |
| Installation Type |
|
| Dimensions without packaging (H x W x D) [mm(in.)] | Diameter x depth: 180 mm x 35 mm (7.09 in. x 1.38 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 200 mm x 231 mm x 61 mm (7.87 in. x 9.09 in. x 2.40 in.) |
| Weight without packaging [kg(lb)] | 0.45 kg (0.99 lb) |
| Weight with packaging [kg(lb)] | 0.75 kg (1.65 lb) |
| Storage | NAND Flash 256 MB |
| Console port | None |
| Maximum power consumption [W] | 8.8 W |
| Maximum heat dissipation [BTU/hour] | 28.5 BTU/hour |
| Power supply mode | PoE |
| Rated input voltage [V] | NA |
| Input voltage range [V] | PoE: 802.3af |
| Service port surge protection | PoE port:
|
| Maximum number of physical ports on the entire device | GE (RJ45) x 1, 10M/100M/1000M auto-sensing |
| Long-term operating temperature [°C(°F)] | 0°C to 40°C (32°F to 104°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.) |
| Storage temperature [°C(°F)] | –40°C to +70°C (–40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Long-term operating altitude [m(ft.)] | –60 m to +5000 m (–196.85 ft to +16404.20 ft) |
| Atmospheric pressure [kPa] | 53kPa – 106kPa ETSI 300 019-2-3 |
| Ground | floating ground |
| BLE | Not supported |
| Radio number | 2 |
| Operating frequency band |
|
| MIMO spatial streams | Radio 0 (2.4 GHz): 2×2
Radio 1 (5 GHz): 2×2 |
| Wi-Fi standard |
|
| Radio interface | Built-in smart antennas |
| Antenna gain | 2.4G:
5G:
|
| Maximum transmit power | 2.4G:
5G:
|
| Singal radio transmit power [dBm] |
|
| MTBF [year] | 440.3 year |
| MTTR [hour] | 2 hour |
| Frequency stability [ppm] | +/-20 |
| 802.3bt power supply description | No function is limited. |
| 802.3at power supply description | No function is limited. |
| 802.3af power supply description | No function is limited. |
| DC power supply description | DC power supply is not supported. |
