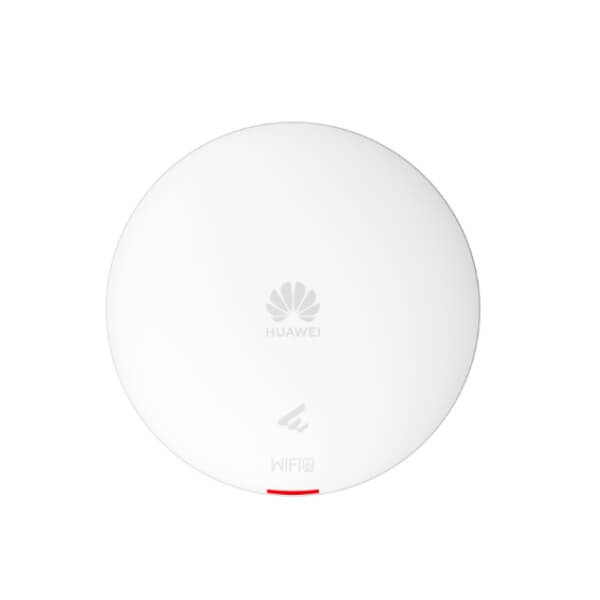

Huawei AP362 Access Point Dubai
The Huawei AP362 Dubai is a cutting-edge indoor Wi-Fi 6 (802.11ax) access point engineered to deliver outstanding performance and unparalleled flexibility. Designed to operate simultaneously on both the 2.4 GHz (2×2) and 5 GHz (2×2) frequency bands, this access point ensures a seamless and robust wireless experience. It stands out with its high bandwidth capabilities, the capacity to manage numerous concurrent connections, and a sleek, compact design that makes it ideal for easy deployment. Moreover, its cost-effectiveness adds significant value for customers seeking a reliable solution.
These attributes make the Huawei AP362 Dubai an exceptional choice for providing indoor coverage in small to medium-sized enterprise (SME) markets. It is particularly well-suited for a variety of environments, including SME network enterprise offices, small to medium-sized hospitals, commercial real estate properties, budget-friendly chain hotels, and primary and secondary educational institutions. Its versatility, combined with its strong performance, ensures that it delivers dependable and efficient connectivity across these diverse settings, making it a robust solution for any organization looking to enhance its wireless infrastructure.
Features
- Working simultaneously on the 2.4 GHz (2×2) + 5 GHz (2×2) frequency bands

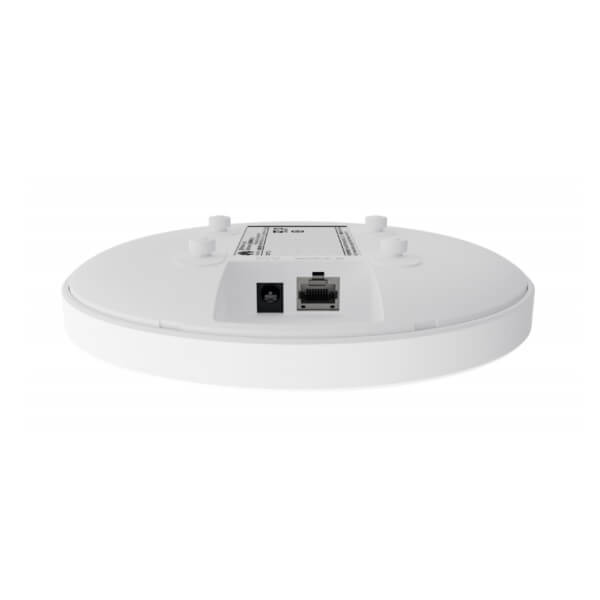

- 1 x GE electrical port
- Built-in smart antennas that automatically adjust the coverage direction and signal strength based on the intelligent switchover algorithm to adapt to the changing application environment, providing accurate and stable coverage as STAs move
- Working modes: Fit, Fat, and cloud management
Technical Specifications
| Description | AP362(11ax indoor,2+2 dual bands,smart antenna) |
| Part Number | 50085706 |
| Model | AP362 |
| First supported version | V200R021C11 |
| Installation Type |
|
| Dimensions without packaging (H x W x D) [mm(in.)] | Diameter x depth: 180 mm x 35 mm (7.09 in. x 1.38 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 200 mm x 231 mm x 52 mm (7.87 in. x 9.09 in. x 2.05 in.) |
| Weight without packaging [kg(lb)] | 0.46 kg (1.01 lb) |
| Weight with packaging [kg(lb)] | 0.80 kg (1.76 lb) |
| Storage | NAND Flash 256 MB |
| Console port | None |
| Maximum power consumption [W] | 11.2 W |
| Power supply mode |
|
| Rated input voltage [V] | 12 V |
| Input voltage range [V] |
|
| Service port surge protection | PoE port:
Common mode (8 wires to ground): 4 kV (1.2/50 us, 42 ohms), criterion C |
| Maximum number of physical ports on the entire device | GE (RJ45) x 1, 10M/100M/1000M auto-sensing |
| Long-term operating temperature [°C(°F)] | –10°C to +50°C (14°F to 122°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.) |
| Storage temperature [°C(°F)] | –40°C to +70°C (–40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Long-term operating altitude [m(ft.)] | –60 m to +5000 m (–196.85 ft to +16404.20 ft) |
| Atmospheric pressure [kPa] | 53kPa – 106kPa ETSI 300 019-2-3 |
| Ground | floating ground |
| BLE | Not supported |
| Radio number | 2 |
| Operating frequency band |
|
| MIMO spatial streams |
|
| Wi-Fi standard |
|
| Radio interface | Built-in smart antennas |
| Antenna gain | 2.4G:
5G:
|
| Maximum transmit power | 2.4G:
5G:
|
| Singal radio transmit power [dBm] |
|
| MTBF [year] | 205.07 year |
| MTTR [hour] | 0.5 hour |
| Frequency stability [ppm] | +/-20 |
| 802.3bt power supply description | No function is limited. |
| 802.3at power supply description | No function is limited. |
| 802.3af power supply description | No function is limited. |
| DC power supply description | No function is limited. |
