Description

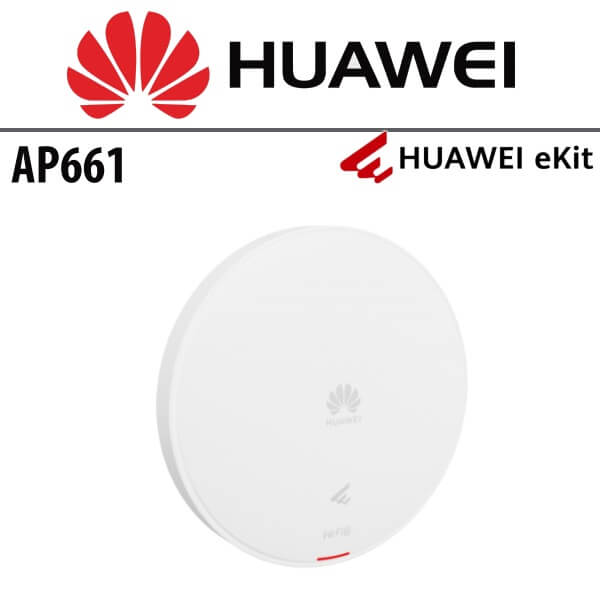

Huawei AP661 Access Point Dubai
The Huawei AP661 Dubai is a cutting-edge wireless access point (AP) crafted to meet the demands of the latest Wi-Fi 6 standard. This sophisticated AP is engineered to deliver high-performance wireless services across three distinct frequency bands simultaneously: the 2.4 GHz band with 2×2 MIMO, the 5 GHz band with 2×2 MIMO, and an additional 5 GHz band with 4×4 MIMO. The integration of built-in smart antennas ensures that Wi-Fi signals are not only robust but also consistently stable, greatly enhancing the overall wireless network experience for users. This advanced technology makes the Huawei AP661 Dubai an excellent choice for environments with high user density, such as mobile offices, educational institutions, and large-scale venues like stadiums, where reliable and efficient wireless connectivity is essential.
Features
- 1 x 2.5GE electrical port + 1 x GE electrical port
- Built-in smart antennas that automatically adjust the coverage direction and signal strength based on the intelligent switchover algorithm to adapt to the application environment change, and provide accurate and stable coverage as STAs move
- USB port for IoT expansion (such as ZigBee and RFID)
- Bluetooth serial interface-based O&M through the built-in Bluetooth module by collaborating with CloudCampus APP; collaboration with a location server to accurately locate Bluetooth terminals and tags
- Working modes: Fit, Fat, and cloud management
Technical Specifications
| Description | AP661(11ax indoor,2+2+4 tri bands,smart antenna,USB,BLE) |
| Part Number | 02355VFC |
| Model | AP661 |
| First supported version | V200R023C10 |
| Installation Type |
|
| Dimensions without packaging (H x W x D) [mm(in.)] | Diameter x depth: 220 mm x 50 mm (8.66 in. x 1.97 in.) |
| Weight without packaging [kg(lb)] | 1.08 kg (2.38 lb) |
| Storage | NAND Flash 512 MB |
| Console port | BLE console |
| Maximum power consumption [W] | 21.2 (excluding USB), 802.3at/af power supply |
| Power supply mode |
|
| Rated input voltage [V] | 12 V |
| Input voltage range [V] |
|
| Service port surge protection | PoE port:
|
| Maximum number of physical ports on the entire device |
|
| Long-term operating temperature [°C(°F)] | –10°C to +50°C (14°F to 122°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.) |
| Storage temperature [°C(°F)] | –40°C to +70°C (–40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Long-term operating altitude [m(ft.)] | –60 m to +5000 m (–196.85 ft to +16404.20 ft) |
| Atmospheric pressure [kPa] | 53kPa – 106kPa ETSI 300 019-2-3 |
| Ground | floating ground |
| USB | USB 2.0 |
| BLE | BLE5.2 |
| Radio number | 3 |
| Operating frequency band |
|
| MIMO spatial streams |
|
| Wi-Fi standard |
|
| Radio interface | Built-in smart antennas |
| Antenna gain | 2.4G:
5G:
|
