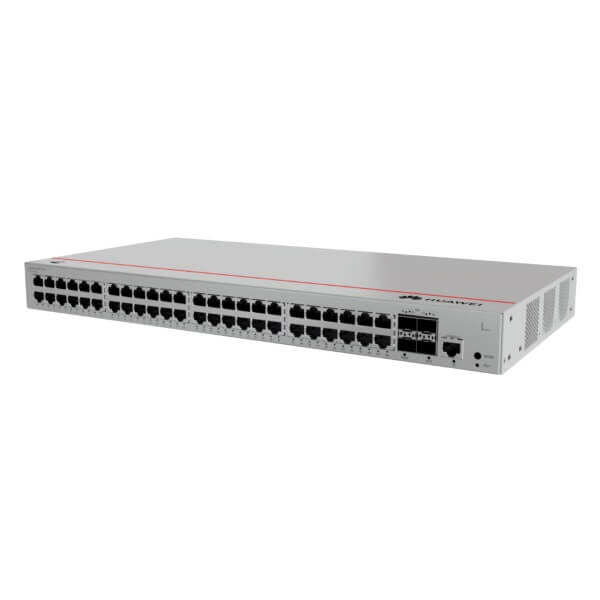

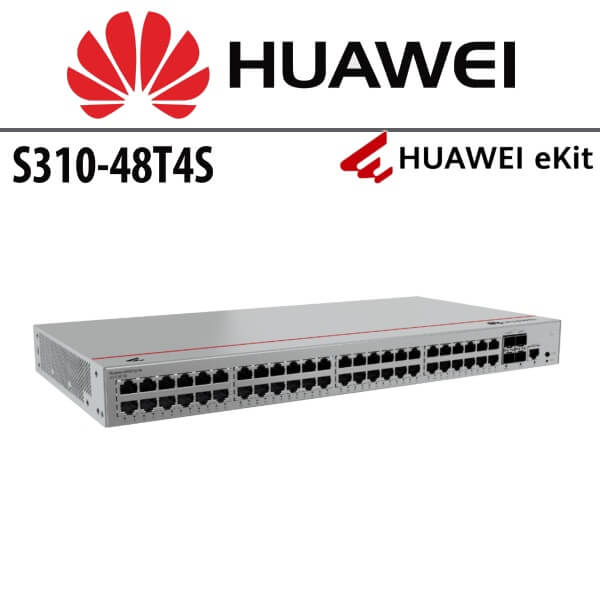

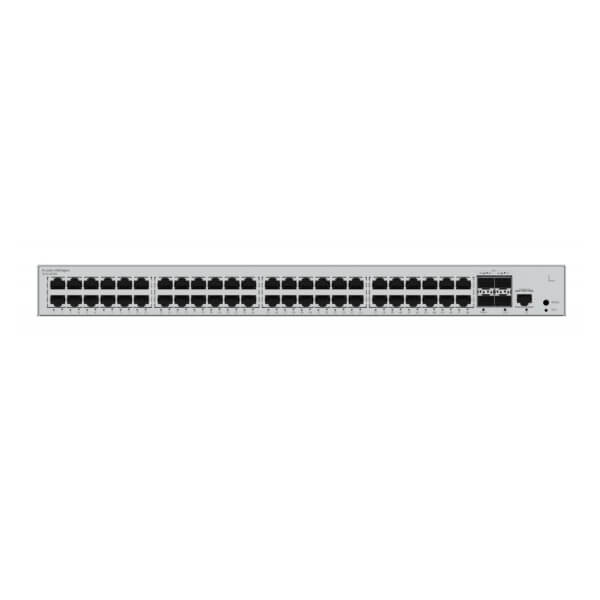

Huawei S310-48T4S Network Switch Dubai
The Huawei S310-48T4S Dubai fixed Ethernet switches are expertly engineered to seamlessly integrate both access and transmission capabilities, delivering dependable access, aggregation, and superior service transmission for enterprise networks. These switches are constructed on a powerful and unified hardware platform, which includes critical components such as the chassis, power module, fan module, and Switch Control Unit (SCU). As unmanaged switches, the Huawei S310-48T4S Dubai models are intentionally designed without web-based management interfaces or SNMP-based management, prioritizing simplicity, ease of use, and straightforward deployment for users who prefer minimal configuration and maintenance efforts.
These switches offer a streamlined and hassle-free experience for network administrators, making them an ideal choice for environments where ease of use, reliability, and efficient performance are essential. With a focus on dependable service transmission, access, and aggregation, the Huawei S310-48T4S Dubai switches empower enterprises to sustain smooth and effective network operations without the need for complex management tools. This makes them particularly suited for businesses that value simplicity, reliability, and efficiency in their network infrastructure.
Furthermore, the unified hardware platform and high-quality components contribute significantly to the durability and longevity of these switches, minimizing the need for frequent replacements or upgrades. The effortless deployment process and minimal maintenance requirements translate into substantial time and resource savings for IT departments, enabling them to concentrate on other critical responsibilities. As a result, the Huawei S310-48T4S Dubai switches stand out as an ideal solution for businesses seeking a straightforward, reliable, and highly efficient network solution that demands minimal intervention.
Technical Specifications
| Description | S310-48T4S (48*10/100/1000BASE-T ports, 4*GE SFP ports, AC power) |
| Part Number | 98012203 |
| Model | S310-48T4S |
| First supported version | V600R022C10 |
| Dimensions without packaging (H x W x D) [mm(in.)] | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.66 in.)
Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 227.0 mm (1.72 in. x 17.4 in. x 8.94 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.) |
| Chassis height [U] | 1 U |
| Chassis material | Metal |
| Weight without packaging [kg(lb)] | 2.71 kg (5.97 lb) |
| Weight with packaging [kg(lb)] | 3.59 kg (7.91 lb) |
| Typical power consumption [W] | 44.9 W |
| Typical heat dissipation [BTU/hour] | 153.2 BTU/hour |
| Maximum power consumption [W] | 52.05 W |
| Maximum heat dissipation [BTU/hour] | 177.6 BTU/hour |
| Static power consumption [W] | 27.55 W |
| MTBF [years] | 40.61 years |
| MTTR [hours] | 2 hours |
| Availability | > 0.99999 |
| Noise at normal temperature (acoustic power) [dB(A)] | 46.6 dB(A) |
| Noise at normal temperature (acoustic pressure) [dB(A)] | 34.6 dB(A) |
| Number of card slots | 0 |
| Number of power slots | 0 |
| Number of fans modules | 1 |
| Switching capacity | To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel. |
| Packet forwarding rate | To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel. |
| Uplink ports | 4 x GE SFP ports |
| Downlink ports | 48 x 10/100/1000BASE-T ports |
| Redundant power supply | Not supported |
| Long-term operating temperature [°C(°F)] | -5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.) |
| Restriction on the operating temperature variation rate [°C(°F)] | When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Devices cannot start when the temperature is lower than 0°C (32°F). The operating temperature ranges from –5°C (23°F) to +45°C (113°F) when optical modules with transmission distances greater than or equal to 60 km are used. The device does not support dying gasp when the ambient temperature is higher than 40°C (104°F). |
| Storage temperature [°C(°F)] | –40°C to +70°C (–40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH (non-condensing) |
| Long-term operating altitude [m(ft.)] | 0–5000 m (0–16404 ft.) |
| Storage altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Power supply mode | AC built-in |
| Rated input voltage [V] | AC input: 100–240 V AC; 50/60 Hz |
| Input voltage range [V] | AC input: 90 V AC to 264 V AC; 45 Hz to 65 Hz |
| Maximum input current [A] | 1.6 A |
| Memory | 2 GB |
| Flash memory | Physical space: 1 GB |
| Console port | RJ45 |
| Eth Management port | Not supported |
| USB | Not supported |
| RTC | Not supported |
| RPS input | Not supported |
| Service port surge protection [kV] | Common mode: ±7 kV |
| Power supply surge protection [kV] | Differential mode: ±6 kV; common mode: ±6 kV |
| Ingress protection level (dustproof/waterproof) | IP20 |
| Types of fans | Built-in |
| Heat dissipation mode | Air cooling for heat dissipation, intelligent fan speed adjustment |
| Airflow direction | Air intake from left and air exhaust from right |
| PoE | Not supported |
| Certification |
|
