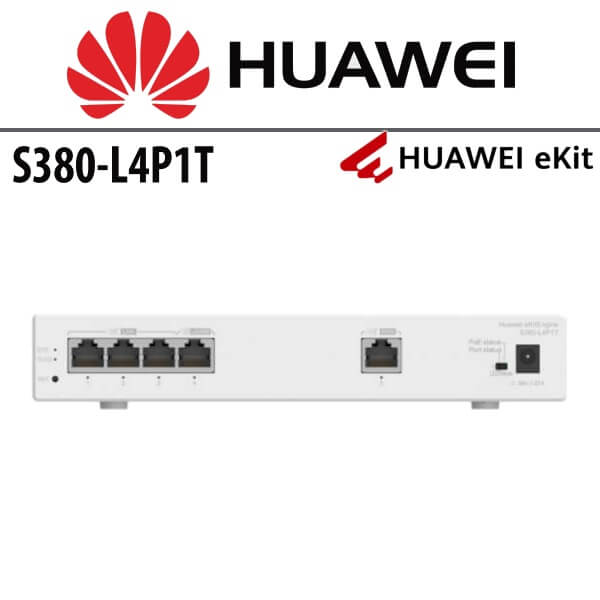

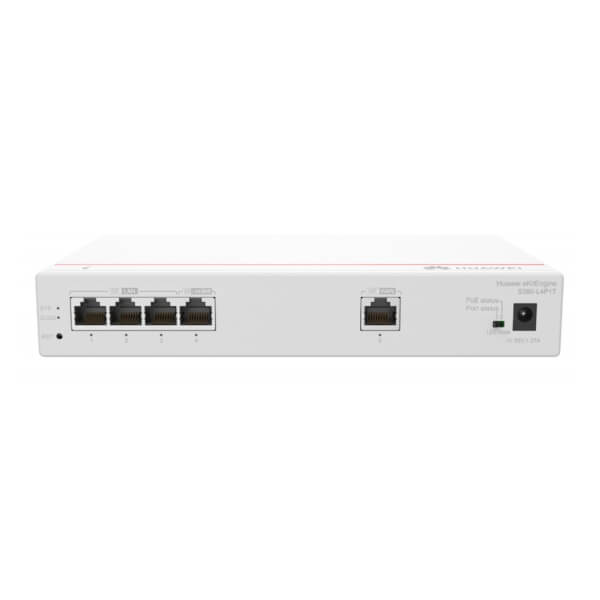

Huawei S380-L4P1T Multi-Service Gateway Dubai
The Huawei S380-L4P1T Dubai Multi-Service Gateways are highly sophisticated devices that skillfully combine routing, switching, and wireless access control (WAC) functionalities into one seamless, integrated unit. These advanced gateways are available in a variety of configurations designed to meet diverse networking needs, ensuring adaptability across different environments. The range includes models with 4 or 8 downlink GE electrical ports, offering both Power over Ethernet (PoE) and non-PoE options, providing flexibility depending on the power requirements of connected devices. In addition, certain models are equipped with GE uplink ports, enhancing network scalability and flexibility, which is essential for more complex network setups.
Built with the user in mind, the Huawei S380-L4P1T Dubai Multi-Service Gateways support flexible Ethernet networking, significantly streamlining the installation and deployment processes. This feature makes them an excellent choice for a wide array of indoor coverage applications. These gateways are particularly suited to small and medium-sized enterprises (SMEs), including small office/home office (SOHO) environments, cost-conscious hotels, manufacturing facilities, primary and secondary educational institutions, and building security systems. Their remarkable versatility and adaptability allow the Huawei S380-L4P1T Dubai to meet a wide range of networking requirements across various industries, ensuring efficient, reliable, and high-performance connectivity for a multitude of applications.
Technical Specifications
| Description | S380-L4P1T, 1*GE WAN, 4*GE LAN(PoE+, 50W) |
| Part Number | 98012178 |
| Model | S380-L4P1T |
| First supported version | V600R022C10 |
| Dimensions without packaging (H x W x D) [mm(in.)] | Basic dimensions (excluding the parts protruding from the body): 35.0 mm x 210.0 mm x 130.0 mm (1.38 in. x 8.27 in. x 5.12 in.)
Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 35.0 mm x 210.0 mm x 136.3 mm (1.38 in. x 8.27 in. x 5.37 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 90.0 mm x 285.0 mm x 180.0 mm (3.54 in. x 11.22 in. x 7.09 in.) |
| Chassis height [U] | 0.8 U |
| Chassis material | Metal |
| Weight without packaging [kg(lb)] | 0.9 kg (1.98 lb) |
| Weight with packaging [kg(lb)] | 1.1 kg (2.43 lb) |
| Typical power consumption [W] | 7.19 W |
| Typical heat dissipation [BTU/hour] | 24.5 BTU/hour |
| Maximum power consumption [W] | 61.65 W (PoE: 50 W) |
| Maximum heat dissipation [BTU/hour] | 210.4 BTU/hour |
| Static power consumption [W] | 4.54 W |
| MTBF [years] | 75.89 years |
| MTTR [hours] | 2 hours |
| Availability | > 0.99999 |
| Noise at normal temperature (acoustic power) [dB(A)] | Noise-free (no fans), < 30 |
| Noise at normal temperature (acoustic pressure) [dB(A)] | Noise-free (no fans), < 20 |
| Number of card slots | 0 |
| Number of power slots | 0 |
| Number of fans modules | 0 |
| Switching capacity | To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel. |
| Packet forwarding rate | To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel. |
| Uplink ports | 1 x GE WAN |
| Downlink ports | 1 x GE WAN, 4 x GE LAN (50 W PoE+) |
| Redundant power supply | Not supported |
| Long-term operating temperature [°C(°F)] | 0°C to 40°C (32°F to 104°F) at an altitude of 0-1800 m (0-5906 ft.) |
| Restriction on the operating temperature variation rate [°C(°F)] | When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
| Storage temperature [°C(°F)] | –40°C to +70°C (–40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH (non-condensing) |
| Long-term operating altitude [m(ft.)] | 0–5000 m (0–16404 ft.) |
| Storage altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Power supply mode | Power adapter |
| Rated input voltage [V] | Power adapter input: 100–240 V AC; 50/60 Hz
Power adapter output: 56 V DC |
| Input voltage range [V] | Power adapter input: 90–290 V AC; 47–63 Hz |
| Maximum input current [A] | 1.07 A |
| Memory | DDR4: 512 MB |
| Flash memory | NAND Flash: 512 MB |
| Console port | Not supported |
| Eth Management port | LAN port |
| USB | Not supported |
| RTC | Not supported |
| RPS input | Not supported |
| Service port surge protection [kV] | Common mode: ±4 kV |
| Power supply surge protection [kV] | Power adapter: ±6 kV in differential mode and ±6 kV in common mode |
| Ingress protection level (dustproof/waterproof) | IP20 |
| Types of fans | None |
| Heat dissipation mode | Natural heat dissipation |
| Airflow direction | – |
| PoE | Supported |
| Certification |
|
