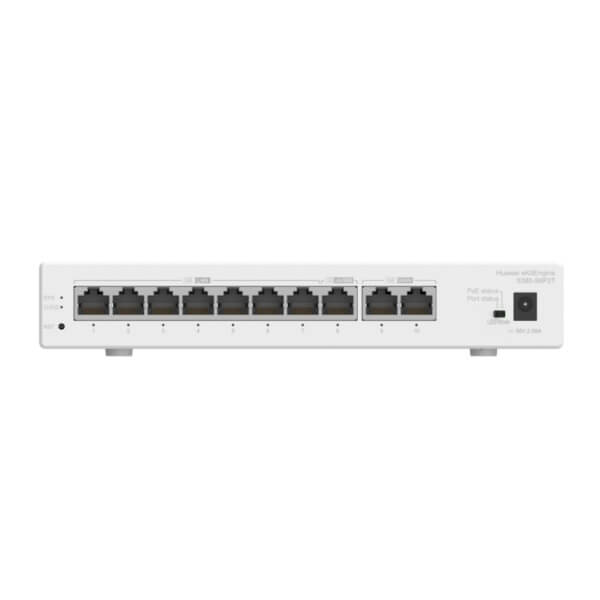

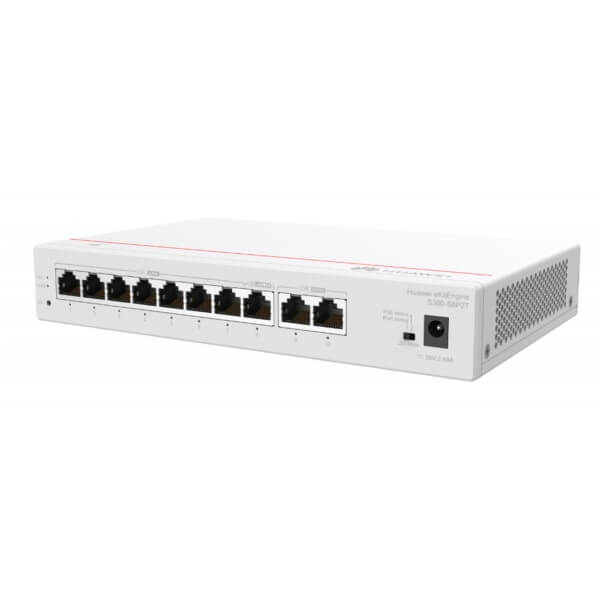

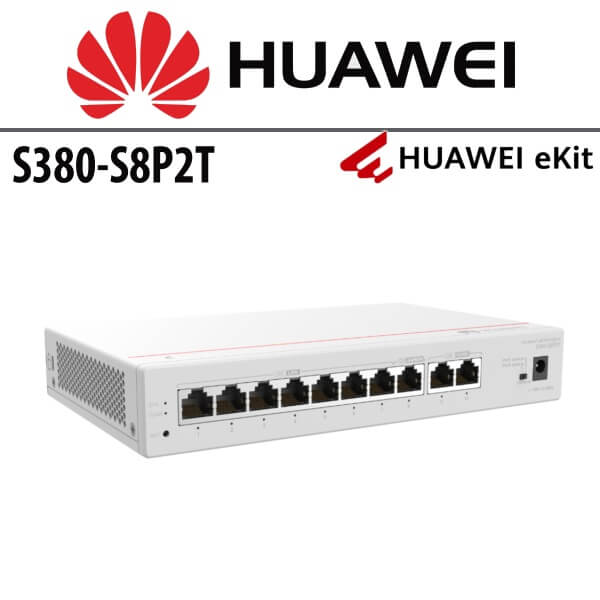

Huawei S380-S8P2T Multi-Service Gateway Dubai
The Huawei S380-S8P2T Dubai Multi-Service Gateways are state-of-the-art devices that seamlessly integrate routing, switching, and wireless access control (WAC) functionalities into a single, all-encompassing unit. These sophisticated gateways come in various configurations, each specifically engineered to address a broad spectrum of network demands. Users can choose from models featuring either 4 or 8 downlink GE electrical ports, with options for both PoE (Power over Ethernet) and non-PoE ports, providing the flexibility to select the setup that best aligns with their unique requirements. Additionally, some models are equipped with GE uplink ports, further enhancing the network’s versatility and performance.
Designed with a focus on user convenience, the Huawei S380-S8P2T Dubai Multi-Service Gateways support flexible Ethernet networking, which significantly simplifies installation and deployment processes. This user-centric design makes these gateways an ideal solution for a wide range of indoor coverage applications. They are particularly well-suited for small and medium-sized enterprises (SMEs), including small office/home office (SOHO) setups, budget-conscious hotels, manufacturing facilities, primary and secondary educational institutions, and building security systems. The gateways’ exceptional flexibility and adaptability ensure that they can effectively meet the diverse networking needs of various business sectors, providing efficient and reliable performance across a wide array of applications.
Moreover, the Huawei S380-S8P2T gateways are built with scalability in mind, ensuring that as businesses expand and their networking demands grow, these gateways can be easily upgraded and expanded to accommodate new requirements. The integration of advanced security features offers robust protection against potential threats, safeguarding the integrity and confidentiality of the network. This blend of features makes the Huawei S380-S8P2T Dubai Multi-Service Gateways an ideal choice for businesses seeking a dependable, high-performance networking solution that can evolve alongside their needs.
Technical Specifications
| Description | S380-S8P2T, 2*GE WAN, 8*GE LAN(PoE+, 124W) |
| Part Number | 98012180 |
| Model | S380-S8P2T |
| First supported version | V600R022C10 |
| Dimensions without packaging (H x W x D) [mm(in.)] | Basic dimensions (excluding the parts protruding from the body): 35.0 mm x 210.0 mm x 130.0 mm (1.38 in. x 8.27 in. x 5.12 in.)
Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 35.0 mm x 210.0 mm x 136.3 mm (1.38 in. x 8.27 in. x 5.37 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 150.0 mm x 275.0 mm x 200.0 mm (5.91 in. x 10.83 in. x 7.87 in.) |
| Chassis height [U] | 0.8 U |
| Chassis material | Metal |
| Weight without packaging [kg(lb)] | 1.5 kg (3.31 lb) |
| Weight with packaging [kg(lb)] | 1.8 kg(lb) |
| Typical power consumption [W] | 12.4 W |
| Typical heat dissipation [BTU/hour] | 42.3 BTU/hour |
| Maximum power consumption [W] | 145.8 W (PoE: 124 W) |
| Maximum heat dissipation [BTU/hour] | 497.5 BTU/hour |
| Static power consumption | 7.53 |
| MTBF [years] | 65.36 years |
| MTTR [hours] | 2 hours |
| Availability | > 0.99999 |
| Noise at normal temperature (acoustic power) [dB(A)] | Noise-free (no fans), < 30 |
| Noise at normal temperature (acoustic pressure) [dB(A)] | Noise-free (no fans), < 20 |
| Number of card slots | 0 |
| Number of power slots | 0 |
| Number of fans modules | 0 |
| Switching capacity | To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel. |
| Packet forwarding rate | To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel. |
| WAN ports | 2 x GE WAN |
| LAN ports | 8 x GE LAN (124 W PoE+) |
| Redundant power supply | Not supported |
| Long-term operating temperature [°C(°F)] | 0°C to 40°C (32°F to 104°F) at an altitude of 0-1800 m (0-5906 ft.) |
| Restriction on the operating temperature variation rate [°C(°F)] | When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
| Storage temperature [°C(°F)] | –40°C to +70°C (–40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH (non-condensing) |
| Long-term operating altitude [m(ft.)] | 0–5000 m (0–16404 ft.) |
| Storage altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Power supply mode | Power adapter |
| Rated input voltage [V] | Power adapter input: 100–240 V AC; 50/60 Hz
Power adapter output: 56 V DC |
| Input voltage range [V] | Power adapter input: 90–290 V AC; 47–63 Hz |
| Maximum input current [A] | 2.68 A |
| Memory | DDR4: 512 MB |
| Flash memory | NAND Flash: 512 MB |
| Console port | Not supported |
| Eth Management port | LAN port |
| USB | Not supported |
| RTC | Not supported |
| RPS input | Not supported |
| Service port surge protection [kV] | Common mode: ±4 kV |
| Power supply surge protection [kV] | Power adapter: ±6 kV in differential mode and ±6 kV in common mode |
| Ingress protection level (dustproof/waterproof) | IP20 |
| Types of fans | None |
| Heat dissipation mode | Natural heat dissipation |
| Airflow direction | – |
| PoE | Supported |
| Certification |
|
