Description

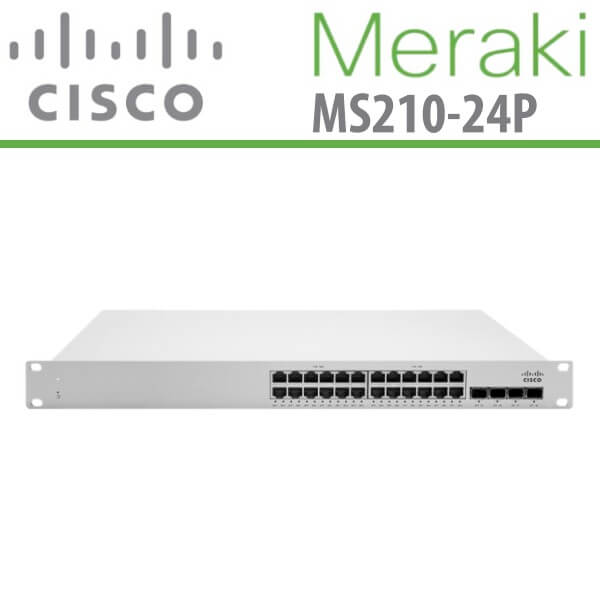

Meraki MS210-24P Network Switch Dubai
Meraki MS210-24P Dubai provides Layer 2 access switching for branch and small campus locations. The MS210-24P includes 4 x 1G SFP uplinks and physically stacks with the MS225 to gain access to its 10G uplink. This model also supports an optional, rack-mountable PSU (Cisco RPS-2300) for power redundancy requirements.
With 5 different models, capable of providing up to 740W of PoE+ power over a variety of port densities, including SFP capable uplinks, the MS210 line is fully ready to support future wireless infrastructure deployments across a variety of different environments.
Product Highlights
- 24 x gigabit ethernet PoE/PoE+ interfaces
- 4 x 1G SFP+ uplink interfaces
- Built-in dual stacking interfaces with up to 80G bandwidth (stacking cables sold separately)
- Non-blocking switch backplane with 128 Gbps of switching capacity
- 6 dedicated QoS queues for converged voice, video, and data applications
- 370 watt PoE budget with PoE+ support and dynamic power allocation for powering APs, phones, cameras, and other PoE enabled devices
- Low power consumption and shallow rack depth options, enabling flexible deployment in wiring closets as well as offices and classrooms
- Integrated mounting brackets for rack and desk mounting
Features:
Centrally managed from the cloud
The Cisco Meraki Cloud Networking architecture enables Plug and Play branch deployments and provides centralized visibility and control across any number of distributed locations. The Meraki MS210-24P Dubai is the industry’s cloud managed switch, combining the benefits of cloud-based centralized management with a powerful, reliable access platform. With cloud management, thousands of switch ports can be configured and monitored instantly, over the web. Provision remote sites without on-site IT, deploy network-wide configuration changes, and easily manage campus and distributed networks without training or dedicated staff.
Layer 7 application and client visibility
Meraki MS210-24P Dubai is the industry’s only switches featuring integrated Layer 7 application and client fingerprinting and analysis. Hundreds of applications are automatically identified and reported, from business apps to BitTorrent and YouTube, so administrators can see where resources are spent.
QoS for voice and video
Deploy latency-sensitive applications such as voice and video by guaranteeing network performance. Voice and QoS features such as per-VLAN and protocol-based prioritization, as well as flexible QoS assignments, give intuitive, granular control.
Enterprise security
Extending security down to the port level has never been easier. Meraki MS210-24P Dubai integrates seamlessly with enterprise-grade security systems using 802.1x. Define access policies, segregate guest devices, and quarantine entire environments right from the dashboard.
Technical Specs:
Miscellaneous
Included Accessories | Feet set |
Rack Mounting Kit | Included |
MTBF | 391,648 hours |
Compliant Standards | CSA, IC, FCC, RoHS, RCM |
Dimensions & Weight
Width | 19.1 in |
Depth | 9.8 in |
Height | 1.7 in |
Weight | 8.18 lbs |
Manufacturer Warranty
Service & Support | Limited warranty – advance parts replacement – lifetime – response time: next business day |
Environmental Parameters
Min Operating Temperature | 32 °F |
Max Operating Temperature | 104 °F |
Humidity Range Operating | 5 – 95% (non-condensing) |
General
Device Type | Switch – 24 ports – managed – stackable |
Enclosure Type | Desktop, rack-mountable 1U |
Subtype | Gigabit Ethernet |
Ports | 24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP (uplink) |
Power Over Ethernet (PoE) | PoE+ |
PoE Budget | 370 W |
Performance |
|
MAC Address Table Size | 16K entries |
Jumbo Frame Support | 9578 bytes |
Remote Management Protocol | SNMP |
Authentication Method | RADIUS |
Features |
|
Compliant Standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1ab (LLDP), IEEE 802.3at |
Expansion / Connectivity
Interfaces |
|
