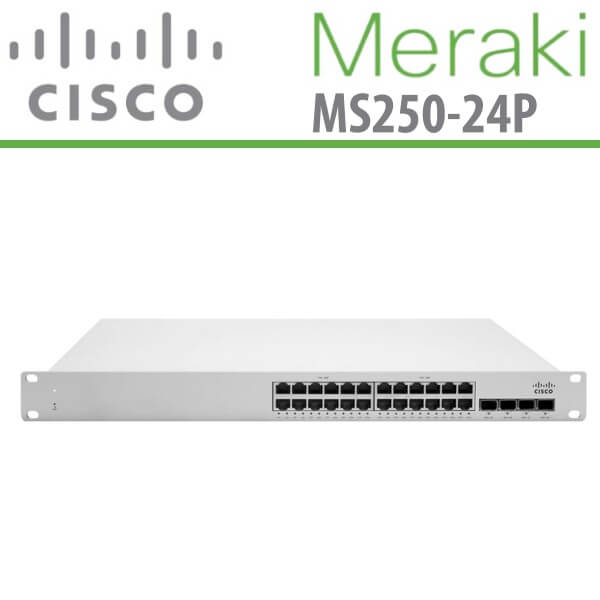

Meraki MS250-24P Dubai

Meraki MS250-24P Dubai is built from the ground up to be easy to manage without compromising any of the power and flexibility traditionally found in enterprise-class switches.

Description

Meraki MS250-24P Network Switch Dubai

The Meraki MS250-24P Dubai 24 Port PoEstackable switch provides reliable access switching ideal for deploying in branches and small campuses. With stacking capabilities and 10G SFP+ uplinks, redundancy and performance are guaranteed. This Cisco Meraki MS250-24P  Dubai also supports redundant, field-replaceable power supplies for mission critical networks.

Meraki MS250-24P Dubai is built from the ground up to be easy to manage without compromising any of the power and flexibility traditionally found in enterprise-class switches.

The Cisco Meraki MS250-24P Dubai is managed through an elegant, intuitive cloud interface, rather than a cryptic command line. To bring up a Meraki switch, just plug it in; there’s no need for complicated configuration files, or even direct physical access to the switch.
Meraki’s centralized management gives administrators deep visibility into the network and how it’s used. See which switches are near capacity across hundreds of sites. Find all configuration changes made by a certain person with instant search.

Meraki MS250-24P Dubai – Features:

  • 24 Port Gigabit Access switching
  • Maximum PoE output: 370 W PoE/PoE+ available simultaneously on all ports
  • Intelligent PoE power allocation based on device advertisement (LLDP)
  • 4 x 10G SFP+ uplink interface
  • Built-in dual stacking interfaces with up to 80G bandwidth
  • Field replaceable power
  • Non-blocking switch backplane with up to 128 Gbps bandwidth support
  • 8 dedicated QoS queues for converged voice, video, and data applications
  • Low power consumption, quiet acoustic design, and shallow rack depth options, enabling flexible deployment in wiring closets as well as offices and classrooms
  • Integrated mounting brackets for rack and desk mounting
  • Lifetime hardware warranty and advanced replacement at no additional cost

MS250-24P Highlights

Configurations

  • 48 port gigabit Ethernet
  • 4 × SFP+ for 10G uplinks
  • 80G Physical Stacking
  • Field replaceable power
  • MS250-24P includes 370 W PoE / PoE+
  • MS250-24PFP includes 740 W PoE / PoE+

Hardware platform

  • Voice and Video QoS
  • Low noise
  • Non-blocking switch fabric
  • Ultra-reliable, includes lifetime warranty

Power over Ethernet (for PoE models)

  • 802.3af (PoE) 15.4 W per port
  • 802.3at (PoE+) 25.5 W per port
  • MS250-24P maximum PoE output : 370 W
  • MS250-24PFP maximum PoE output : 740 W
  • PoE available simultaneously on all ports
  • Intelligent PoE power allocation based on device advertisement (LLDP, CDP)

Cloud management

  • Visibility and control over thousands of ports
  • Built-in multi site management
  • Zero touch provisioning

Monitoring and diagnostics

  • Cable failure testing
  • Gateway connectivity testing
  • Real time troubleshooting tools
  • Email and text message alerts

Layer 3

  • Static routing
  • Dynamic routing (OSPFv2) *
  • DHCP Server and Relay
  • First of a kind UI-based configuration
  • Easy to configure routed interfaces
  • Warm spare (VRRP) with DHCP Failover
