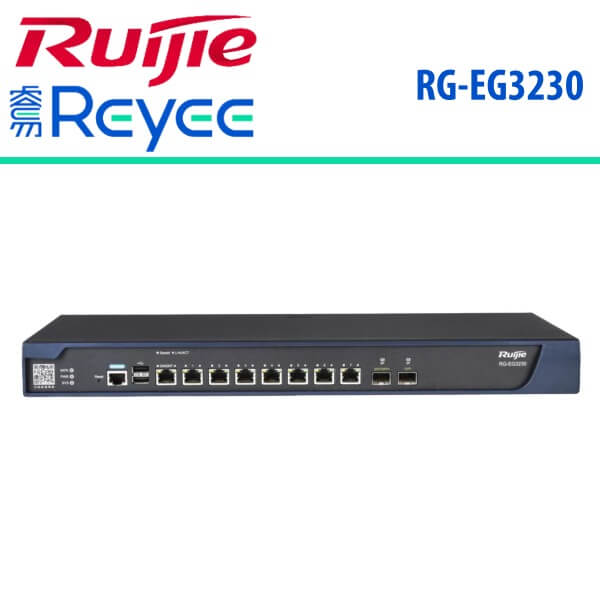

Ruijie RG-EG3230 Router Dubai

Rating

Ruijie RG-EG3230 Router Dubai

Equipped with high-performance multi-core MIPS hardware architecture, the EG Gateway supports a wide range of features such as high-performance NAT, WAN load balancing, smart flow control, online behavior management, visualized IPsec VPN , web authentication, etc.

Description

Ruijie RG-EG3230 Router Dubai

The Ruijie RG-EG3230 Router Dubai is a multi-functional Cloud Managed Security Gateway product for various industries. Equipped with high-performance multi-core MIPS hardware architecture, the EG Gateway supports a wide range of features such as high-performance NAT, WAN load balancing, smart flow control, online behavior management, visualized IPsec VPN , web authentication, etc.

Taking advantage of integrated Hard Disk Drive  (HDD), the EG Security Gateway can provide local storage for Internet activities logging, which is essential for National Internet Security Compliance in many countries.

Key Features:

  • Flexible Authentication
    • With integration with Ruijie Cloud Service (https://www.ruijienetworks.com/products/smb/cloud-service/), the Ruijie RG-EG3230 Router Dubai provides the easy, secure and flexible authentication experience for various business scenarios.
    • All account or portal management can be managed at Ruijie Cloud centrally, but all authentication  are processed locally at EG Gateway, which guarantee for authentication performance and the highest availability, such that any connectivity error with Ruijie Cloud service will not bring any service interruptions to the user authentication service.
  • VPN Visualization

    • Ruijie RG-EG3230 Router Dubai has significantly simplified the VPN configuration, which could be completed just by a few clicks, eliminating the need for professional maintenance. The gateway enables users to view and control the traffic in the VPN tunnel, establishing a visualized VPN to guarantee the security of key services using VPN.

  • Traffic Analysis

    • Equipped with powerful DPI technology, the Ruijie SME Security Gateway collects traffic usage statistics based on users, applications and links for report generation, providing reliable historical data for bandwidth expansion as well as user and application-based bandwidth control policies.

  • Centralized Cloud Management

    • Couple with Ruijie Cloud services, the Ruijie RG-EG3230 Router Dubai is now able to be monitored & managed from the centralized cloud services. Ruijie Cloud is the free cloud-based management platform for all the Security Gateway series. No hardware or servers required to be installed on customer premise. Device monitoring, configuration changes & firmware management can be performed easily in anytime, anywhere & anyway.

  • Intuitive Mobile App

    • Apart from the accessing cloud management dashboard from workstation, Ruijie offer an alternative to manage Security Gateway from your fingertips, a tailor-made Mobile App you can download from Google Play and Apple Appstore. You can now access to Security Gateway even you’re away from your PC.

  • Built-in Internet Audit Log Storage

    • At the heart of most devices that provide protection for IT networks is an ability to log events and take actions based on those events. Ruijie SME Security Gateway (EG3230 model only) supports detail logging both on what has happened to the device and what is happening. A local attached 1TB hard disk provides sufficient storage to keep all the necessary audit logging trail. It increase the higher logging retential period before it is exported to external logging server

Technical Specs:

Model RG-EG3230

Hardware Specification

CPU

Multi-core MIPS

Fixed Ports

  • 8 1000BASE-T ports
  • 1 SFP port
  • 1 SFP+ port (non-combo)

WAN Ports

Upto 6

Flash

8M SPIFLASH

Hard Disk

Standard 1TB

Memory

2G

Performance & Feature

Performance

4000Mbps (1518 bytes)

2610Mbps (512bytes)

622Mbps (64 bytes)

Concurrent Session

300,000

Recommended Concurrent User

1000

Portal Authentication Capacity

1000 (Max Concurrent Users)

Portal Authentication Type

  • Username/Password Auth (Local, Windows-based AD/LDAP Integration)
  • One-click Authentication;
  • Guest Voucher (Ruijie Cloud required);

Seamless Authentication (Portal)

Support

App Caching

Support

Cache Resources

Windows System Patches

Network Protocol

  • Support TCP/IP protocols, including IP, ICMP, TCP, UDP, etc.
  • Support multiple routing protocols, including static routing, RIP (V1 / V2) and OSPF
  • Support DHCP Relay and DHCP Server
  • Support PPPoE Client
  • Support NAT and multiple NAT ALG including FTP, H.323, DNS, etc.
  • Support ARP, trusted ARP, proxy ARP, etc.
  • Support Ping and Traceroute fault detection

Application Visibility

  • Support self-developed 43 types of applications / more than 120 application features, customizable protocol identification :
  • P2P : BitTorrent, eMule, Thunder, EDONKEY, FlashGet & etc.
  • Multimedia : YouTube, Facebook Video, WebEx Conference & etc.
  • Social Media : Facebook, Twitter, LinkedIn, Pinterest & etc.
  • VOIP/Chat : Skype, Viber, Google Hangout, Jabber, Facebook Messenger & etc.
  • Instant Messaging/Email : Gmail, MSN, QQ, YAHOO & etc.
  • Software Update : Window, McAfee, Kaspersky, ESET & etc.
  • Cloud-based File Collaboration : GoogleDrive, Dropbox, OneDrive, iCloud & etc.
  • Enterprise Application :HTTP, FTP, SMTP, POP3, IMAP, Telnet, LOTUS-NOTES, SQL Server, Oracle, Mysql, HTTPS & etc.

URL Filtering

  • Support HTTP/HTTPS domain filtering
  • Support remote HTTP automatic URL library upgrade
  • Local log storage (NAT log, traffic log, URL log, etc.)
  • Support storage on external log server

WAN Load Balancing

Support (upto 6 WAN Port)

IPsec VPN Tunnel

600

Network Security

  • Anti-ARP Spoofing
  • Defense against malicious attacks from internal and external networks
  • Support secure address binding
  • Block WAN Ping
  • Prevent Port Scan Attack
  • Prevent Fragmentation Attack
  • Prevent ICMP Flood Attack
  • Prevent Teardrop Attack
  • Prevent Ping of Death Attack
  • Prevent Land Attack
  • Prevent Smurf / Fraggle attack
  • Prevent SYN Flood Attack

Layer 2 Features

  • Support Bridging
  • Support LAN Port Aggregation

Ruijie Cloud Integration Feature

  • Support device health monitoring status
  • Support centralized configuration change management & backup
  • Support Top 10 Application/User traffic visualization
  • Support device firmware management
  • Support event-based alarm notification

Other Features

Integrate with AAA software to support multiple authentication modes

Other Features

Service and Support

Support push advertising page

Support multi-link load balancing

Support remote HTTP online upgrade for signature library, software version, etc.

Lifetime Free signature library upgrade

Rack Height

1U

Weight

4kg

Power Supply

100-240V~,50-60Hz,0.65A

Power Consumption

<25W

Dimensions (W x D x H) (mm)

440×200×43.6

Operating Temperature

0°C to 40°C

Operating Humidity

10% to 90%RH
