Ruijie RG-EW1200 Dubai

Rating

Ruijie RG-EW1200 Dubai

The Ruijie RG-EW1200 Dubai offers 1 10/100Mbps WAN port and 3 10/100Mbps LAN ports, with maximum access bandwidth of 100Mbps. The recommended number of clients is 48, including 24 wireless terminals.

Description

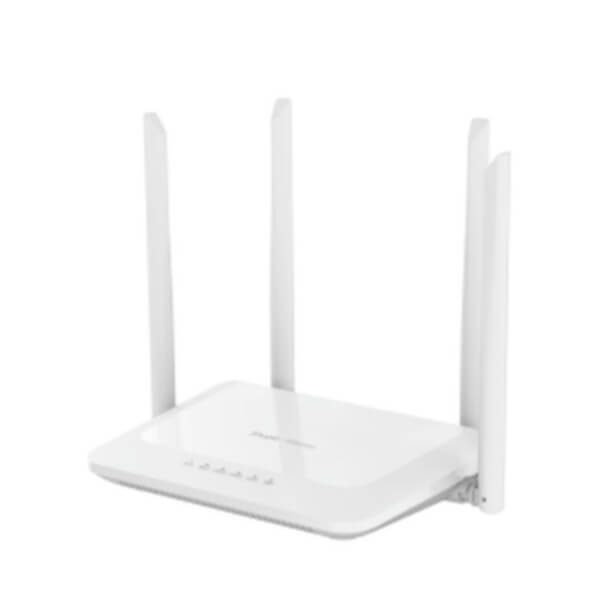

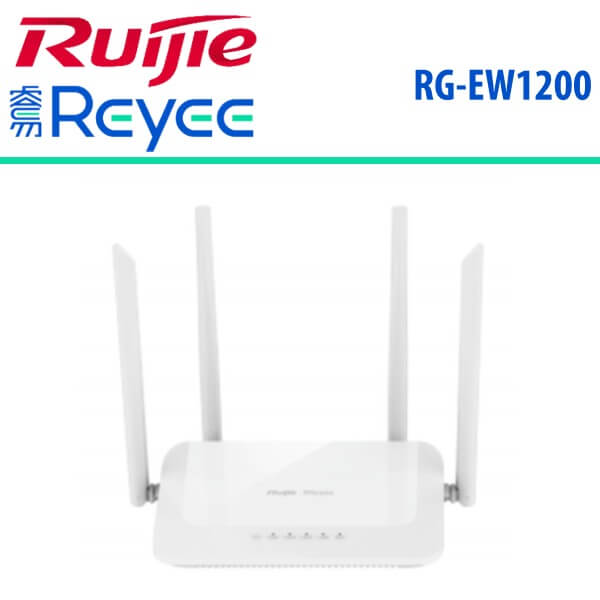

Ruijie RG-EW1200 Wireless Router Dubai

Ruijie RG-EW1200 Dubai a 1200M dual-band wireless consumer router, specifically designed for the apartment, the self-building housing, the small retail store and other scenarios. The device adopts dual-frequency access, with low wireless interference; worked with the unique Reyee Mesh Technology, it completely eliminates the configuration and installation obstacles caused by multiple networking set up and additional devices add-on; User friendly App, coupled with the Parental Control, Game Acceleration key,  functions, etc.

The Ruijie RG-EW1200 Dubai offers 1 10/100Mbps WAN port and 3 10/100Mbps LAN ports, with maximum access bandwidth of 100Mbps. The recommended number of clients is 48, including 24 wireless terminals.

The device supports both 2.4GHz and 5GHz and work concurrently, offering maximum wireless rate of 300Mbps at 2.4G, 867Mbps at 5G and 1167Mbps per router. It lowers the wireless interference and latency, thereby improving the terminals’ Internet access performance and users’ Internet experience.

In addition to Reyee Mesh Technology, Ruijie RG-EW1200 Dubai also supports network deployment with itself or RG-EW1200G PRO for unified management and configuration. No matter which networking method is used, the RF adjustment algorithm applied to millions of Ruijie enterprise-grade APs can provide seamless roaming between devices and fast switching between 2.4GHz and 5GHz. Users can move around the Wi-Fi coverage area without service interruption thanks to the seamless roaming.

Features

1167M Dual-Band Integration Offering Low Interference and Fast Internet Speed

Affected by the actual application environment, the 2.4GHz frequency band has high interference and the testing speed is usually only 40 to 50M, which is unlikely to reach 100M. Ruijie RG-EW1200 Dubai provides both 2.4GHz and 5GHz wireless frequency bands at the same time. The 2.4GHz frequency band offers good penetration, long transmission and wide coverage, providing good basic signal coverage. The 5GHz frequency band features low interference, high speed, and low latency, providing better experience when watching HD videos and playing online games. The SSIDs of 2.4GHz and 5GHz can be set separately, or the two can be combined into one, offering dual-band concurrent access, 5G priority and smart identification, which provides better Internet experience.

Exclusive Reyee Mesh Technology Enables Zero-configuration Networking for Multi

Reyee Mesh is a networking technology self-developed by Ruijie for multiple wireless routers’ connection, which supports both plug-in and one-key pairing. Without requiring any pre-configuration, you can complete the pairing process between EW1200 and EW1200G PRO, for additional equipment installation, and coverage optimization with zero threshold. Multiple wireless routers connected. By Reyee Mesh Technology, it can intelligently identify the connection status and automatically switches between wireless relay and wired relay modes to improve network reliability.

Reyee Mesh Technology Offers Seamless Roaming without Disconnection

Reyee Mesh Technology supports wired or wireless networking among multiple devices. The RF adjustment algorithm applied to millions of Ruijie enterprise-grade APs can provide seamless roaming between the equipment and fast switching between 2.4GHz and 5GHz. When users walk around under the Wi-Fi signal coverage, the optimal frequency band selection and network switching will be automatically performed without service interruption.

Parental Control Allow Parents to Monitor Their Child’s Internet Use

Users can control the Internet access authority of the specified terminal through the Ruijie Cloud App and set rules to limit the online duration of the specified terminal.

Wi-Fi Acceleration Button Put You One Step Ahead of Other Players

The Wi-Fi acceleration button, so-called “Xpress”, improves the anti-interference of the Ruijie RG-EW1200 Dubai and the wireless channel efficiency under high-interference environment, thereby reducing game lagging and putting you one step ahead of other players in same internet condition.

Temporary Authorization for Remote Management

Users can use the Ruijie Cloud App for smart network inspection to determine the current network failures. Users can also temporarily grant network authorization and share network to technical personnel who can do remote-diagnosis through various technical tools such as Ruijie Cloud app and EWeb to avoid unnecessary on-site services.

Hardware Specifications

Wireless specifications 2.4GHz 2*2 : maximum rate 300Mbps;

5GHz 2*2 : maximum rate 867Mbps

Antenna : External 4*5dBi non-removable omnidirectional antennas
Support 802.11a/b/g/n/ac/ac Wave2, MU-MIMO
Frequency band : Independent 2.4GHz and 5GHz modules, supporting dual frequency integration
Support beamforming
Wi-Fi channel :
2.4GHz Channel : 1,2,3,4,5,6,7,8,9,10,11,12,13
5GHz Channel : 36,40,44,48,52,56,60,64,149,153,157,161,165
Ports 1 10/100M WAN port(Auto MDI/MDIX)
3 10/100M LAN ports(Auto MDI/MDIX)
1 system LED indicator, 3 network port LED indicators, 1 Wi-Fi indicator
1 device pairing/factory reset button
1 power input interface
Physical specifications Dimensions :182x121x32mm (W×D×H, excluding antennas)
Weight :0.4kg(entire equipment including packaging)
Power supply Power specification : DC12V 0.6A
Maximum power : <7W
Certification CCC,SRRC
Operating environment Operating temperature : -10-45℃
Storage temperature : -40-70℃
Operating humidity : 5%-95%RH (non-condensing)
Storage humidity : 5%-95%RH (non-condensing)
Main features Routing mode : PPPoE / DHCP / static IP; relay mode: wired relay / wireless relay
Obtain PPPoE account from the old router
Wi-Fi dual-band separation/ integration
Guest Wi-Fi; smart home Wi-Fi; wireless network isolation
Static DHCP address
Virtual server : port mapping, DMZ, etc.
DDNS : Oray
UPnP
Network security Wireless security : WPA-PSK/WPA2-PSK encryption
ARP protection : IP/MAC binding
SSID hiding
Preventing rogue devices (Blacklist/whitelist)
Internet access control
Advanced features Reyee Mesh : Supports zero-configuration networking of multiple devices, and supports automatic switching between wired and wireless networking for multiple devices
Wi-Fi optimization : Wi-Fi roaming, 5G priority, acceleration mode, channel adjustment, power adjustment, roaming sensitivity adjustment
Bandwidth management : hardware NAT, intelligent bandwidth allocation
Auto network inspection, fault diagnosis
Software upgrade : Automatic & manual cloud software upgrade
Management mode Local web page
Ruijie Cloud app : iOS version, Android version
