Description

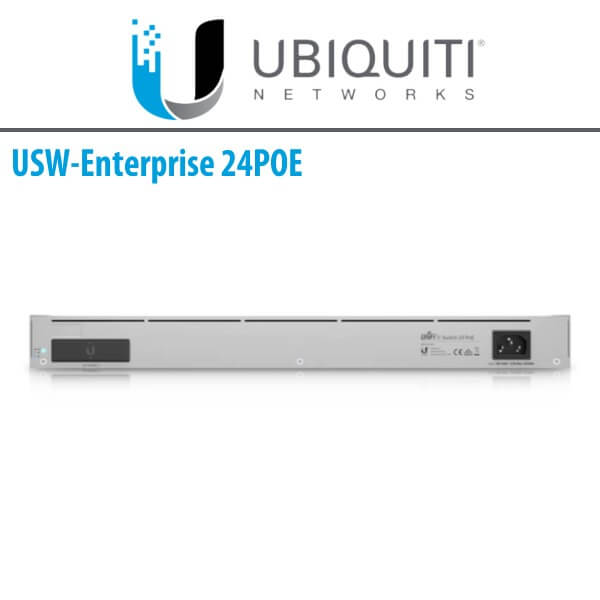

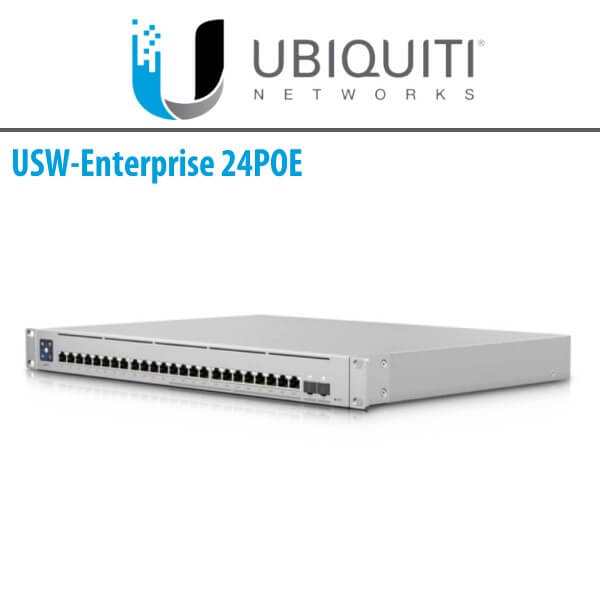

Ubiquiti USW-Enterprise24POE Network Switch Dubai
The Ubiquiti USW-Enterprise24POE Dubai is a fully managed, Layer 3 switch with (12) 2.5GbE, 802.3at PoE+ RJ45 ports, (12) GbE, 802.3at PoE+ RJ45 ports, (2) 10G SFP+ ports, and a 400W total PoE supply. The USW Enterprise 24 PoE also features a 1.3″ LCM color touchscreen that concisely displays key system and connection insights.
Additionally, the Ubiquiti USW-Enterprise24POE offers enhanced power supply failure protection when connected to the SmartPower Redundant Power System (USP RPS sold separately). This Ubiquiti USW-Enterprise24POE Dubai can be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.
Features:
- (1) 1.3″ LCM color touchscreen with AR switch management
- (12) GbE, 802.3at PoE+ RJ45 ports
- (12) 2.5GbE, 802.3at PoE+ RJ45 ports
- (2) 10G SFP+ ports
- (1) USP RPS DC input
- 400W total PoE supply
- Layer 3 switching features
- Single-row RJ45 port layout for easy patch panel cable management
Technical Specs
| Mechanical | |
|---|---|
| Dimensions | 442.4 x 43.7 x 325 mm (17.4 x 1.7 x 12.8″) |
| Weight | Without Mount : 5.11 kg (11.27 lb) With Mount : 5.2 kg (11.46 lb) |
| Enclosure Materials | SGCC Steel |
| Mount Material | SGCC Steel |
| Hardware | |
| Total Non-Blocking Throughput | 62 Gbps |
| Switching Capacity | 124 Gbps |
| Forwarding Rate | 92.25 Mpps |
| Max. Power Consumption | 550W |
| Power Method | (1) Universal AC input : 100-240VAC, 8.5A Max., 50/60 Hz (1) USP-RPS DC input : 52VDC, 7.7A; 11.5VDC, 8.7A |
| Power Supply | AC/DC, Internal, 550W |
| Management Interface | Ethernet In-Band |
| Networking Interfaces | (12) 10/100/1000 Mbps RJ45 Ethernet (12) 100/1000/2500 Mbps RJ45 Ethernet |
| SFP+ Interfaces | (2) 1/10G SFP+ |
| PoE Interfaces | (24) PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-) |
| Max. PoE+ Wattage per Port by PSE | 34.2W |
| Voltage Range 802.3af Mode | 44 to 57V |
| Voltage Range 802.3at Mode | 50 to 57V |
| Services | SMB Layer 3 PoE Gigabit Ethernet Switch |
| ESD/EMP Protection | Air : ± 16 kV, Contact : ± 12 kV |
| Operating Temperature | -5 to 40° C (23 to 104° F) |
| Operating Humidity | 10 – 95% Noncondensing |
| Certifications | CE, FCC, IC |
| LEDs | |
| System | (1) Bootup Animation : Bootup in Progress Firmware Upgrade Icon : Firmware Upgrading Steady White : Factory Defaults, Awaiting Adoption Steady Blue : Device is Adopted |
| Ethernet | White : Link or Activity |
| SFP+ | White : Link or Activity |
