Description

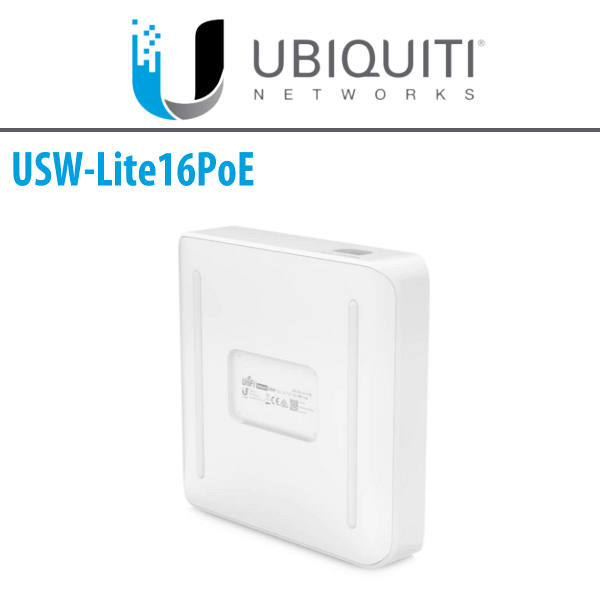

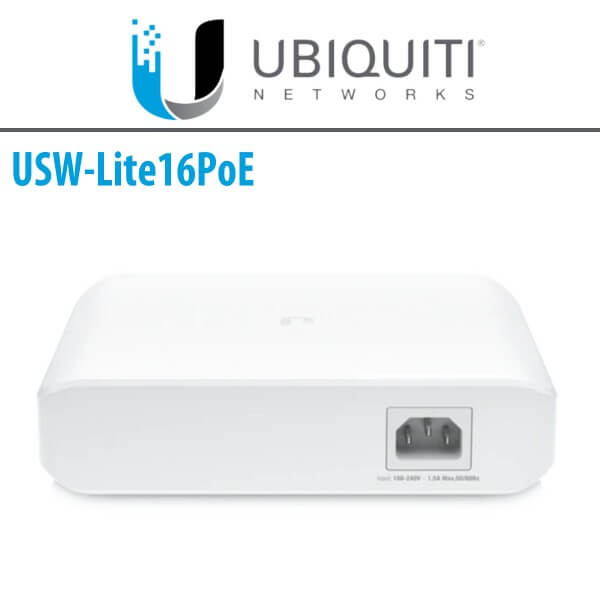

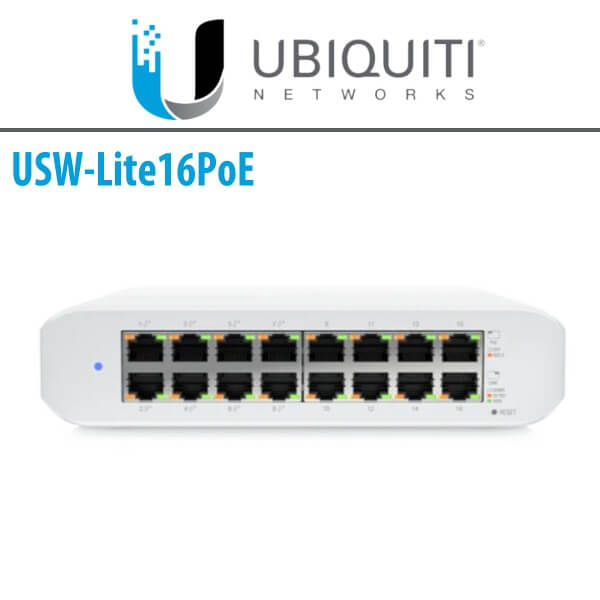

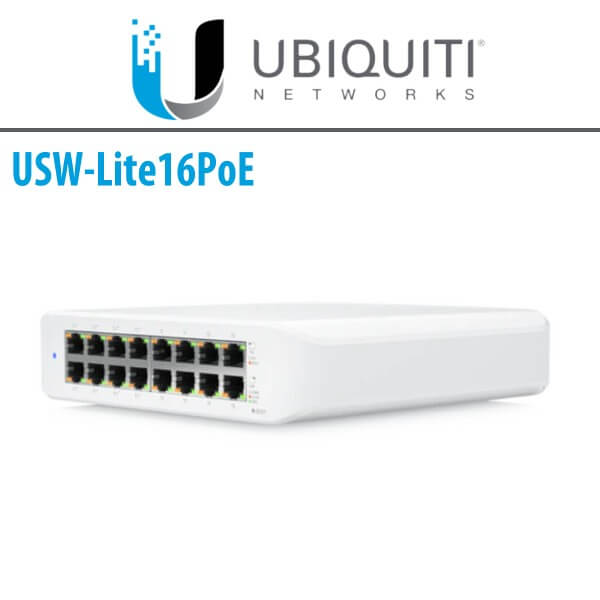

Ubiquiti USW-Lite16PoE Network Switch Dubai
Ubiquiti USW-Lite16PoE Dubai is equipped with 8 ports which offer auto-sensing 802.3at PoE+ which deliver a total of 45W PoE Wattage for UniFi Access Points or other PoE Devices. It is a Fully Managed Layer 2 Switch With Sixteen Gigabit Ethernet Ports For Your RJ45 Ethernet Devices.
Managed And Configured By The UniFi Network Controller With UniFi Mobile App Support, The Ubiquiti USW-Lite16PoE Dubai offers Layer 2 Switching Protocols And Features. The UniFi Network Controller And Mobile App Allow Admins To Configure And Monitor Virtually All Of The Switch Features In A Graphical User Interface From Anywhere.
Features:
- (16) Gigabit RJ45 ports including (8) 802.3at PoE+
- Managed by UniFi Controller (5.13.10 or later)
- External 60W power adapter
- Wall-mountable (Kit included)
Technical Specifications
- Dimensions : 191.7 x 185 x 43.7 mm (7.55 x 7.28 x 1.72″)
- Weight :1.2 kg (2.65 lb)
- Total Non-Blocking Line Rate : 16 Gbps
- Max. Power Consumption : 15W
- Power Method Universal AC Input : 100-240VAC
- Power Supply : Internal 60W AC/DC Power Supply
- Networking Interfaces : (16) 10/100/1000 Mbps Ethernet RJ45
- PoE Interfaces : (8) PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)
- Mangement Interface Ethernet In-Band
- Max PoE+ Wattage per Port by PSE 30W
- Modes : SMB Layer 2 PoE Gigabit Ethernet Switch
- Operating Temperature : -15 to 40° C (5 to 104° F)
- Operating Humidity : 10 – 90% Noncondensing
- Certifications : CE, FCC, IC
LED
- System
– (1) Power, Blue/WhiteFlashing White : Bootup in Progress
– Flashing Blue : Firmware Upgrading
– Steady White : Factory Defaults, Awaiting Adoption
– Steady Blue : Device is Adopted - Ethernet Green : 1G, Amber: 10/100 Mbps
- PoE Amber : IEEE 802.3af/at
