Description

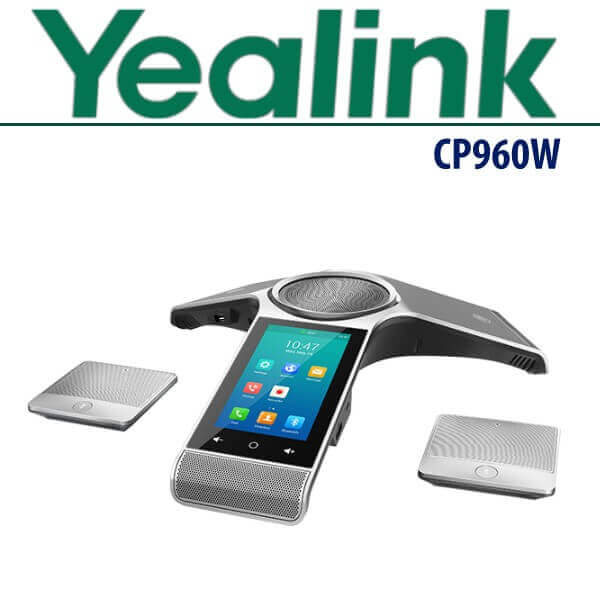

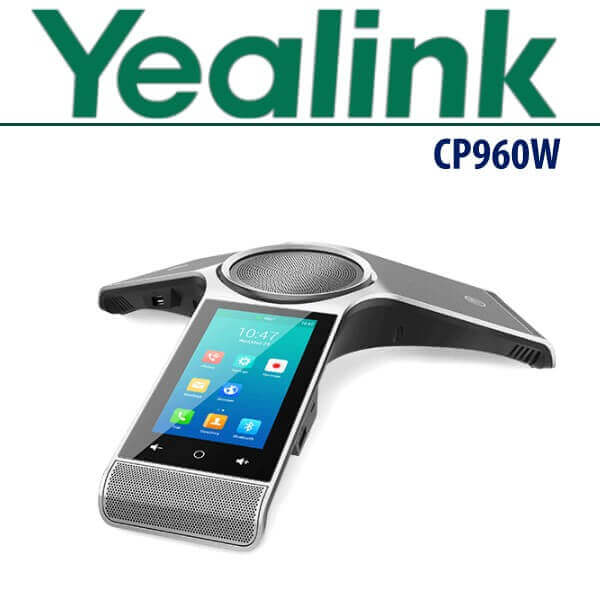

Yealink CP960W – Skype For Business Conference Phone Dubai
With user-centric design philosophy, the Y-shape brand new release from Yealink combines simplicity of use with sophistication of features, being perfect for any team environment, especially for medium to large conference room. In regard of its crystal-clear audio quality, your conversation will sound natural and bright anywhere with well-designed CP960, and beyond that, you can connect an external loudspeaker to it if necessary. The Yealink CP960 provides wireless and wired pairing with your mobile staff – smartphone or PC/tablet via Bluetooth and USB Micro-B port; As a valuable complement for your conference room, Yealink concentrates on users themselves, giving you a easily and clearly engaging business conference experience.
Yealink CP960W – Skype For Business Features:
- Optima HD IP Conference Phone Compatible with Microsoft Skype for Business
- The Yealink CP960W, compatible with Microsoft Skype for Business, is an enterprise-grade conference phone, bringing the Skype for Business experience and functionality from the desktop to the conference room. Based on Android OS, the CP960W not only unceasingly boosts the user experience, but also strikes an exquisite balance between simplicity and sophistication with Skype for Business user-interface. Delivering unparalleled audio clarity, the CP960W is armed with Yealink’s Optima HD Voice technology and SILK speech codec, that phone users will think they are sitting in the same room with one another. Besides, CP960W enhances your office productivity by supporting multi phone functions, including Skype for Business conference, calendar, CAP, hot desking, Boss/Admin.
- HD audio
- The Yealink CP960W conference phone combines the hardware and software, including the Yealink Noise Proof Technology, to fully improve its audio quality. Thanks to its built-in 3-microphone array, CP960W owns a 20-foot (6-meter) and 360-degree voice pickup range, regarding as an ideal solution for any conference room that needs best audio experience, as if all participants are sitting across the table from each other!
- Easy to use
- The 5-inch multi-touch screen and the Skype for Business interface provide for a rich visual presentation and easy menu navigation. The CP960W is fully compatible with Skype for Business and Office 365, making for a rich and capable ecosystem for team environment. Simply sign in with your Skype for Business account; your presence status and contacts immediately sync with the SFB client. The CP960W even lets users synchronize Outlook Calendar meeting schedules in real-time- join a meeting with just a tap.
- Ease of deployment
- Supporting Microsoft’s Skype for Business Server in-band provisioning and in-band configuration management enables a carefree configuration and easier-than-ever mass deployment. Automatically deployed on a variety of servers- http, https, tftp and ftp, Yealink CP960W can even be pre-installed with Yealink’s premium software for Skype for Business prior to shipping, meaning plug-and-play for customers immediately after unboxing.
Technical Specifications
Audio features
• Optimal HD audio
• Yealink Noise Proof Technology
• 20-foot (6-meter) microphone pickup range
• Apply to medium to large conference room
• Built-in 3-microphone array, 360-degree voice pickup
• 56mm diameter and 10w speaker
• Full-duplex speakerphone with AEC
• Echo cancellation tail length is up to 320ms
• Background noise suppression
• Codecs: G722, G722.1C, G726, G729, G723, iLBC, Opus
• DTMF: In-band, Out-of-band (RFC 2833) and SIP INFO
• VAD, CNG, PLC, AJB, AGC
• 1 VoIP account
• Call hold, mute, DND, call recording, hotline
• 5-way conference call
• Redial, call waiting, emergency call
• Call forward, call transfer, call return, dial plan
• Ring tone selection/import/delete
• Set date time manually or automatically
• Volume adjustment
• Pairing via Bluetooth/USB Micro-B port
• External speaker connection via 3.5mm audio-out port
• Create meeting directly
• Join meeting seamlessly
• ActiveDirectory
• Local phonebook up to 1000 entries
• XML/LDAP remote phonebook
• Intelligent search method
• Phonebook search/import/export
• Call history: dialled/received/missed/forwarded
• Black listIP-PBX features
• Intercom
• Multicast paging
• Anonymous call
• Anonymous call rejection
• Voice mail
• Distinctive ringtone
• Call pickupDisplay
• 5” 720×1280 capacitive touch screen
• Volume key
• Home buttonInterface
• 1 x RJ45 10/100M Ethernet port
• Built-in Wi-Fi (2.4GHz/5GHz, 802.11.b/g/n/ac)
• Built-in Bluetooth 4.0
• Power over Ethernet (IEEE 802.3af ), class 4
• 2 x Wired MIC port
• 2 x USB 2.0 port
• 1 x 3.5mm audio-out port
• 1 x USB 2.0 Micro-B device port
• 1 x Security slotNetwork and security
• SIP v1 (RFC2543), v2 (RFC3261)
• SIP server redundancy supported
• IPv4/IPv6
• NAT traversal: STUN mode
• Proxy mode and peer-to-peer SIP link mode
• IP assignment: static/DHCP
• HTTP/HTTPS web server
• Time and date synchronization using SNTP
• UDP/TCP/DNS-SRV (RFC 3263)
• QoS: 802.1p/Q tagging (VLAN), Layer 3 ToS, DSCP
• SRTP for voice encryption
• Transport Layer Security (TLS)
• HTTPS certificate manager
• AES encryption for configuration file
• Digest authentication using MD5/MD5-sess
• OpenVPN, IEEE802.1X
Management
• Configuration: browser/phone/auto-provision
• Auto provision via FTP/TFTP/HTTP/HTTPS for mass deploy
• Auto-provision with PnP
• Zero-sp-touch, TR-069, SNMP
• Reset to factory, reboot
• Package tracing export, system log
Other physical features
• External Yealink PoE adapter (optional)
• Power consumption (PoE): 5.25w-12.3w
• Dimension (W*D*H): 338mm*338mm*74mm
• Operating humidity: 10~90%
• Storage temperature: -10~40°C (+14~104°F)
Package features
• Package content:
– Yealink CP960 IP conference phone
– Ethernet Cable (7.5m CAT5E UTP cable)
–Yealink PoE Adapter YLPOE30 (Optional)
• N.W/CTN: 5.6 kg (CP960) 10.4 kg (CP960-WirelessMic)
• G.W/CTN: 8.4 kg (CP960) 11.6 kg (CP960-WirelessMic)
• Giftbox size: 405mm*392mm*141mm
• Carton Meas: 589mm*401mm*421mm
