Description

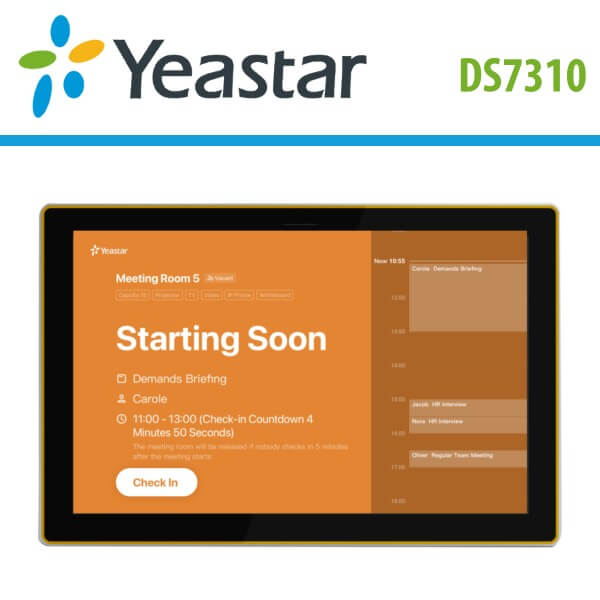

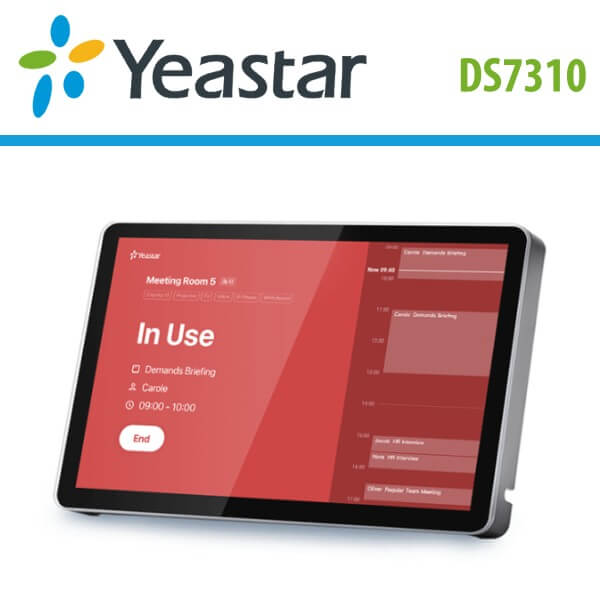

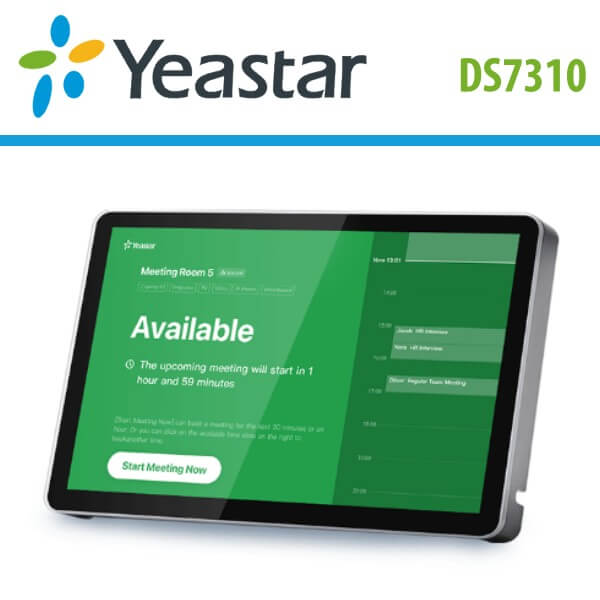

Yeastar DS7310 Room Display Dubai
The Yeastar DS7310 Dubai is an easy-to-use digital display that comes with a clear 1280*800, 10.1-inch LCD panel which offers is users a quick access to details as well as an enhanced visual clarity. The DS7310 can be powered via a PoE injector or PoE switch. It is an Android-based device that boasts of a generously-large storage capacity of 2GB RAM and 16GB internal memory that can hold a variety of your favorite multi-media content.
Yeastar DS7310 Dubai comes with built-in support for Wi-Fi 802.11 b/g/n connectivity that allows its users to easily connect to available internet networks. It also has a built-in USB 2.0 port that allows for easy connection to compatible devices for easy content sharing. The DS7310 is a wall-mountable(VESA-compatible) device that can easily be installed anywhere, resulting in a neat and tidy work space.
Features
- RK3288, Quad-core Cortex A17
- Resolution: 1280*800, 10.1″ LCD panel
- 5.0M/P, front camera
- RAM 2GB
- Internal memory 16GB
- Android 8.1
- Point capacitive touch
- Wi-Fi 802.11 b/g/n
- RJ45 Ethernet with PoE
- USB 2.0
- VESA: 75*75mm
Technical Specs
| Feature | Description | |
|---|---|---|
| Display | Touch Screen | 10.1-inch LCD IPS touch screen |
| Resolution | 1280 x 800 pixels | |
| Active Area | 217.4mm(L) x 136.4 mm(H) | |
| Aspect Ratio | 16 : 10 | |
| Contrast ratio | 800 | |
| Connectivity | Wi-Fi | 802.11b/g/n |
| Wired connectivity | 100M/1000M ethernet | |
| Bluetooth | Bluetooth 4.0 | |
| System | Android 8.1 | |
| Power |
|
|
| Dimension & Weight | Dimension | 259.36(L) x 178.36(H) x 28(W) mm |
| Weight | 0.94kg | |
| Mount | Wall mount | |
| Environmental Conditions | Operating Temperature | 0°C to +40°C |
| In door use only | ||
Package Contents
- Yeastar DS7310
- Quick Installation Guide
- Optional PoE injector
- VESA Mount Metal Kit
